Refrigerated Air Dryer

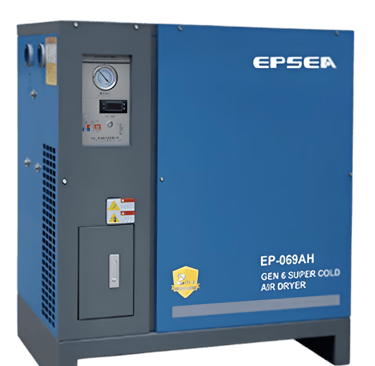

Air Cooled Refrigerated Air Dryer

Technical Indicators

• Intake Temperature 10~60 ºC

• Cooling Air Cooled

• Ambient Temperature 2~45 ºC

• Pressure Dew Point 2~7 ºC

• Working Pressure Range 0.6~1.3MPa

Product Features

• Extreme Speed Pre-cooling system: The unique structural design of the pre cooling channel ensures that the compressed air at the entrance is fully and quickly cooled.

  Ultra-low pressure loss makes the refrigeration system cycle run more efficiently.

• High-efficiency Evaporation System: The improved evaporation channel is developed so that the heat of the compressed air is fully absorbed by the liquid refrigerant.

  Absorbed, the refrigerant is completely "vaporized" back to the compressor suction port for the refrigeration system. In a cycle, the gaseous water in the compressed air is cooled and a large amount of liquid water is precipitated.

• Dual Stage Water Separation System: Efficient gas-water separation contains crude. The two-channel structure is compressed into the water distributor. The air flow rate is reduced, the coarse water separation structure will completely separated a large number of liquid water and the fine water separation. The structure will again separate some of the liquid water droplets carried by the airflow fluid drag force, ensuring that. maximum separation efficiency, thus achieving a more stable dew point.
