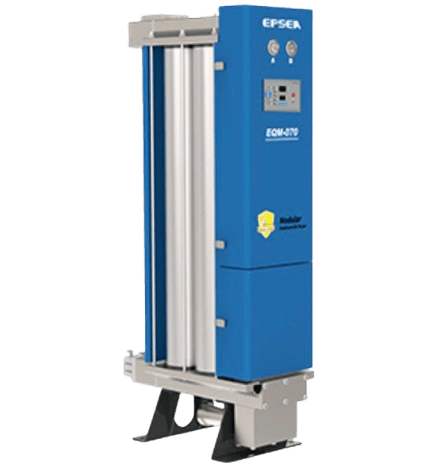

Modular Adsorption Air Dryer

Regenerative Modular Adsorption Air Dryer

Technical Indicators

• Intake Temperature <38ºC

• Working Pressure Range 0.6~1.0MPa

• Ambient Temperature <38ºC

• Pressure Dew Point -20~-40ºC

• Max Intake Temperature 45ºC

• Pressure Loss <0.021MPa

• Max Ambient Temperature 45ºC

Product Features

• The average split technology makes full use of each adsorbent, so the required adsorbent and regeneration gas are greatly reduced compared with the double-tower type; small size, suitable for various applications; No pressure vessel inspection is required, which saves cost and time.

• The cavity is made of aluminum alloy to endure the quality of compressed air, which is suitable for the food and medicine industry; Mold core replacement technology, easy and convenient maintenance. The adsorption chamber adopts pipeline design, which makes the fuselage morecompact and reasonable with smaller and lighter volume; The snowstorm filling technology avoids the tunnelling effect of the adsorbent thus making the dew point more stable.
