Adsorption Air Dryer

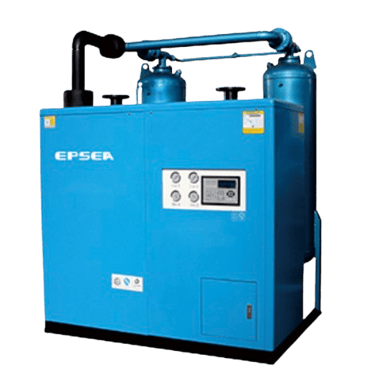

Heatless Regenerative Combined Air Dryer

Technical Indicators

• Regen Mode. Heatless Regen

• Cooling Air/Water Cooled

• Cooling Water Pressure 0.2~0.4MPa

• Cooling Water Temperature 2~32ºC

• Ambient Temperature 2~40ºC

• Working Pressure Range 0.6~1.0MPa

• Pressure Dew Point < 40ºC

• Intake Temperature 10~60ºC

Product Features

• Refrigeration system: Adopt internationally famous refrigeration compressor and high performance refrigeration components and other parts, and the system design is perfect.

• Adsorption system: The tower body is designed and manufactured in accordance with the pressure vessel specification. Selection of domestic famous desiccant, high compressive strength, wear resistance, high temperature resistance, no hydrolysis. Special design is adopted to enable continuous gas supply when the adsorption tower is switched. The slow and safe charging procedure and time-delay switching design eliminates airflow pulsation, prevents the adsorbent from moving and mitigated the impact. Separated filling port and discharge port for easy replacement of adsorbent. Imported pneumatic butterfly valve is selected to ensure the stable operation of equipment.

• Characteristics of control box: It adopts ATMEL's high-performance microprocessor chip design. The panel is provided with a clear process flow chart, which can directly display the running state of the equipment. LED Display: Including selection state display. Highly integrated, high reliability, high cost performance.
