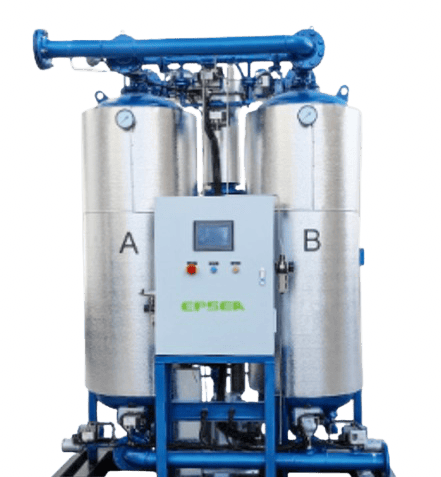

Adsorption Air Dryer

Micro Gas Blower Heat Regenerative DesiccantAir Dryer

Technical Indicators

• Intake Temperature <38ºC

• Regen mode Blower Heated Regeneration

• Ambient Temperature 2~40ºC

• Pressure Dew Point < -40ºC

• Working Pressure Range 0.6~1.0MPa

• Pressure Loss < 0.021MPa

• Intake Oil < 0.1ppm

• Power AC/380V/50HZ

• Standard Adsorption Cycle 8h

• Regenerative Air Consumption 2~5%

Product Features

• Deep drying with dry and clean finished gas blowing cold, pressure dew points up to -70ºC. 8 hours long operation cycle with dew point conttol function, maximum energy saving.

• PLC automatic control, reliable operation. Alarm function and multiple interlocking protection are set in the control system.
