Adsorption Air Dryer

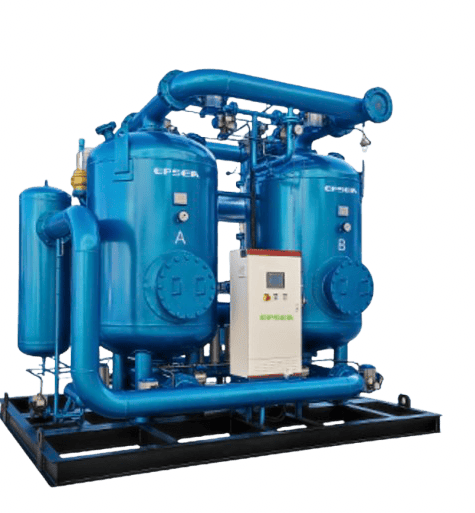

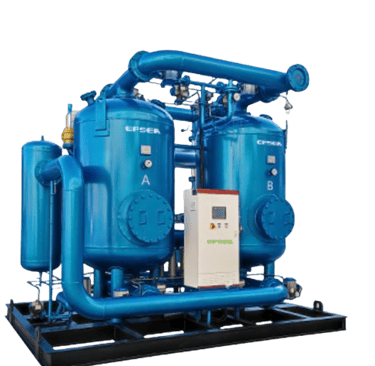

Micro Gas Compression Heat Desiccant Air Dryer

Technical Indicators

• Intake Temperature 110~180ºC

• Regen mode Compression Heat Regen

• Ambient Temperature 2~40ºC

• Cooling Water Pressure 0.2~0.4MPa

• Cooling Water Temperature 2~32ºC

• Pressure Dew Point -20~40ºC

• Working Pressure Range 0.6~1.0MPa

• Standard Adsorption Cycle 8h

• Regenerative Air Consumption 3%

Product Features

• Residual heat of air compressor is used to heat and regenerative adsorbent without heater power consumption with dry and clean finished product air blowing cold, pressure dew point can reach -40ºC. 8 hours long operation cycle with dew point control function, maximum energy saving.

• PLC automatic control, reliable operation. Alarm function and multiple interlocking protection are set in the control system.
