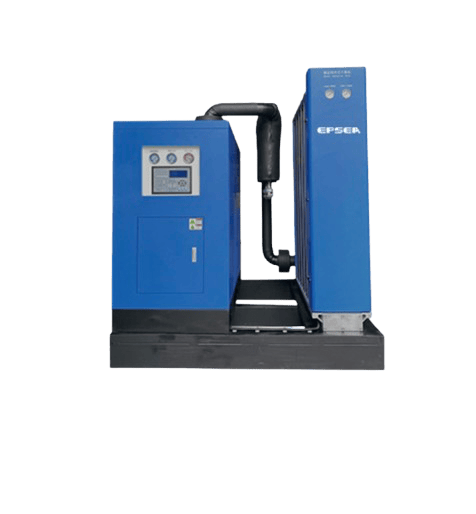

Modular Combined Air Dryer

Technical Indicators

• Intake Temperature 10~60ºC

• Ambient Temperature 2~45ºC

• Pressure Dew Point -40ºC

• Regenerative Air Consumption 5~7%

• Pressure Loss <0.065MPa

• Working Pressure Range 0.6~1.0MPa

Product Features

• Integrate refrigerated air dryer, precision filter and adsorption air dryer into one equipment, which makes it beautiful in appearance, compact in structure and easy to install. Integrated design makes it functional without additional purchase of the other equipment, which directly meet the needs of customers for compressed air quality.

• Adopt high performance integrated controller, according to the user's demand for compressed air quality, not only can run the refrigerated air dryer and adsorption air dryer at the same time, also can run the adsorption air dryer separately. The controller is equipped with the power of self protection function and automatically restores to the state before power failure after power on. The controller is equipped with the standard Modbus communication protocol and can connect to a PC for data collection and monitoring through the RS485 interface.

• High performance pneumatic control valve, quick action response, long service life, good stability. Equipped with standard low power solenoid valve, high precision, quick response. Sound muffler, multi layer fiber material, sound insulation material, equipped with a unique design of mechanical noise reduction, less noise.

• The unique structure enables the adsorption dryer to absorb at low temperature and regenerate effect but also prevents condensation on the outer wall of the pipeline. it also makes the precision filter work at low temperature, so that the filter plays the maximum filtering efficiency. all components operate in the best condition, which can not only reduce the power consumption of the whole system, but also extend the service life of the product.
