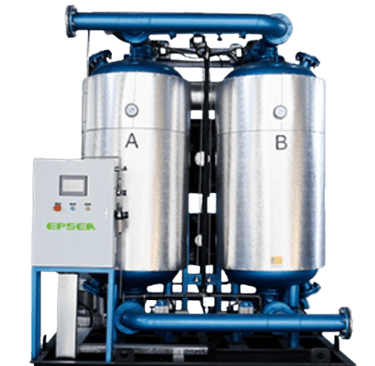

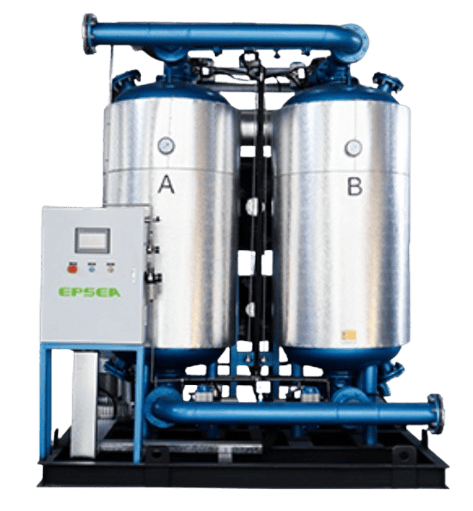

Adsorption Air Dryer

Regenerative Desiccant Air Dryer

Technical Indicators

• Intake Temperature <38ºC

• Regen mode Blower Heated

• Ambient Temperature 2~40ºC

• Pressure Dew Point < -40ºC

• Working Pressure Range 0.6~1.0MPa

• Pressure Loss < 0.021MPa

• Intake Oil < 0.1ppm

• Power AC/380V/50HZ

• Standard Adsorption Cycle 8h

• Regenerative Air Consumption 0

Product Features

• Deep dry, pressure dew point can reach -40ºC below. 8 hours long operation cycle , with dew point control function, maximum energy saving. Ambient air is used for heating regeneration and blowing cooling to ensure zero gas consumption in the regeneration process.

• PLC automatic control, reliable operation. Alarm function and multiple interlocking protection are set in the control system.
