Adsorption Air Dryer

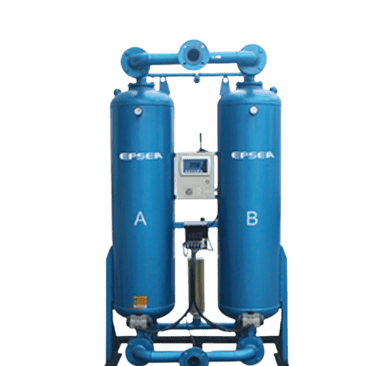

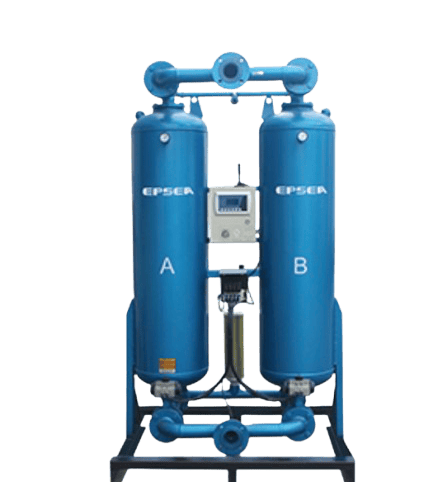

Twin Tower Heatless Regenerative Desiccant Air Dryer

Technical Indicators

• Intake Temperature <38ºC

• Working Pressure Range 0.6~1.0MPa

• Air Consumption <13%

• Inlet Oil Content <0.1ppm

• Pressure Dew Point -20~40ºC

• Adsorbent Alumina Molecular Sieving

• Control Mode Micro Automatic Control

Product Features

• Strictly in accordance with ISO9001, GB150 standards, ISO7183 adsorption dryer standards, QS, pressure vessel inspection specifications for design, manufacturing, and testing, which ensure the safe and reliable operation of products. Reasonable tower infrastructure and control procedures to ensure the impact of compressed air and desiccant bearing and contact time.

• The adsorbent is the national standard purity alumina, molecular sieve, vacuum negative pressure filling way, not easy to powder, long service life. The adsorption tank with pressure vessel certificate is adopted to ensure the safety performance. Intelligent controller, real-time display of operating parameters, high precision, better system stability, easy to learn.

• High performance pneumatic control valve, quick action response, long service life, good stability. Equipped with standard low power solenoid valve, high precision, quick response. Sound muffler, multi-layer fiber material, sound insulation material, equipped with a unique design of mechanical noise reduction, less noise.
