Nitrogen Generator

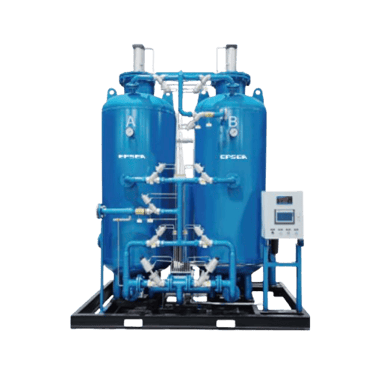

Twin Tower Nitrogen Generator

Technical Indicators

• Nitrogen Purity 98~99.999%

• Noise <70dB

• Working Temperature 5~40ºC

• Pressure Dew Point < -40ºC

• Intake Pressure 0.6~1.0MPa

• Control Type (Standard) PLC Programmable Control

• Max. Ambient Temperature 2~45ºC

• Control Type (High Match) HMI Touch Screen

• Power AC220V/110V-50HZ

Product Features

• Inequality pressure balancing, stable purity, saving gas consumption, energy saving 8% comapred with equal pressure balancing. High quality carbon molecular sleve with advance filling technology, vacuum and blizzard filler. Which makes unit volume filling is 5% more than vibration filling. Unique cyclone internal structure, reduce the impact of gas on molecular sieve, prolong the service life of the molecular sieve.

• Intelligent control system, which can cooperate with flow and pressure to realize frequency conversion operation, further reduce energy consumption, and save more than 50% of energy for specific intermittent operating conditions. 7-inchs man machine screen, intuitive operation data, avaliable at accessing to remote computer and mobile phone (Optional).
