Refrigerated Air Dryer

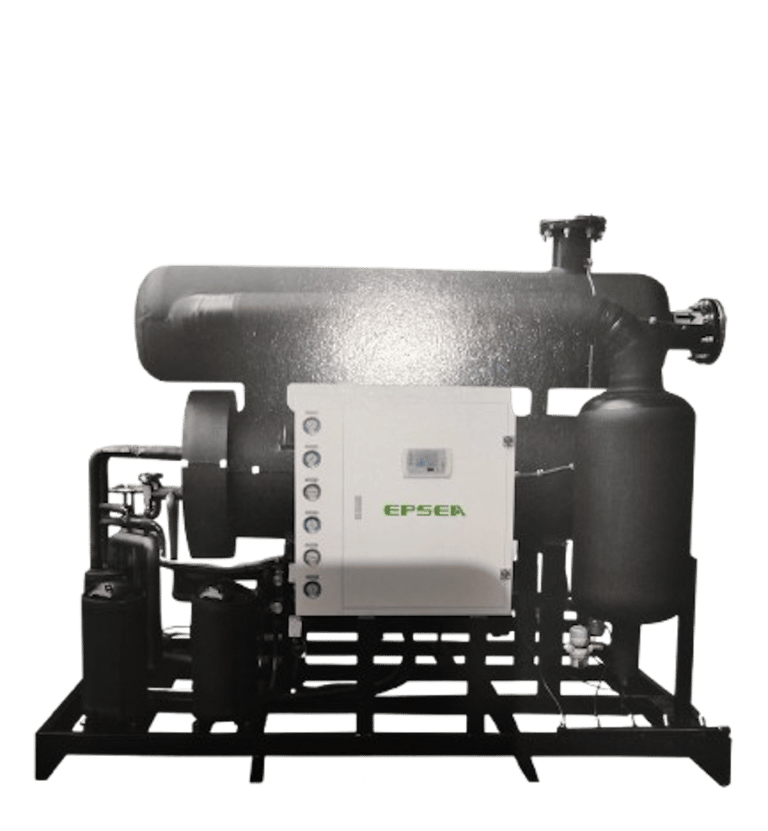

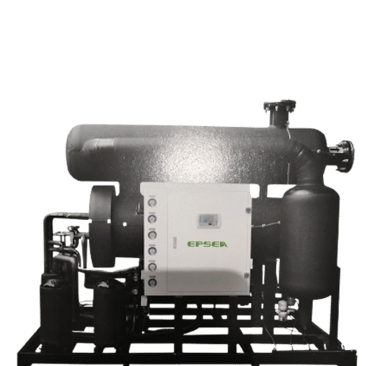

Water Cooled Refrigerated Air Dryer

Technical Indicators

• Intake Temperature 10~60ºC

• Cooling Water cooled

• Pressure Dew Point 2~10ºC

• Working Pressure Range 0.6~1.0MPa

• Enter Water Pressure 0.2~0.4MPa

• Enter Water Temperature 2~32ºC

• Water Quality Industrial Cycling-Water

Product Features

• Strictly in accordance with ISO9001, GB150 standards. Design and manufacture and test according to ISO7183 refrigerates air dryer standard, QS, pressure vessel inspection specification, to ensure the safe and reliable operation of products.

• Water cooled condenser adopts high efficiency heat exchange copper tube, small volume, high heat exchange efficiency. No foundation installation, suitable for closed high ambient temperature operation. Refrigeration parts, control components are used in the international quality brand, which improve the service life. Adopt new fully enclosed refrigeration compressor, long life, low noise, reliable performance, high energy efficiency.

• Equipment structure design is reasonable, the golden proportion of the design concept of super three-dimensional structure; High efficiency gas and water separator device with excellent automatic drain valve, continuous and stable condensate out of the machine;

  Good drain system design, no plugging, with filter can be cleaned regularly; unique refrigeration system design: low temperature and no icing, good refrigeration filtration system, no blocking phenomenon; Effectively remove compressed air moisture.
